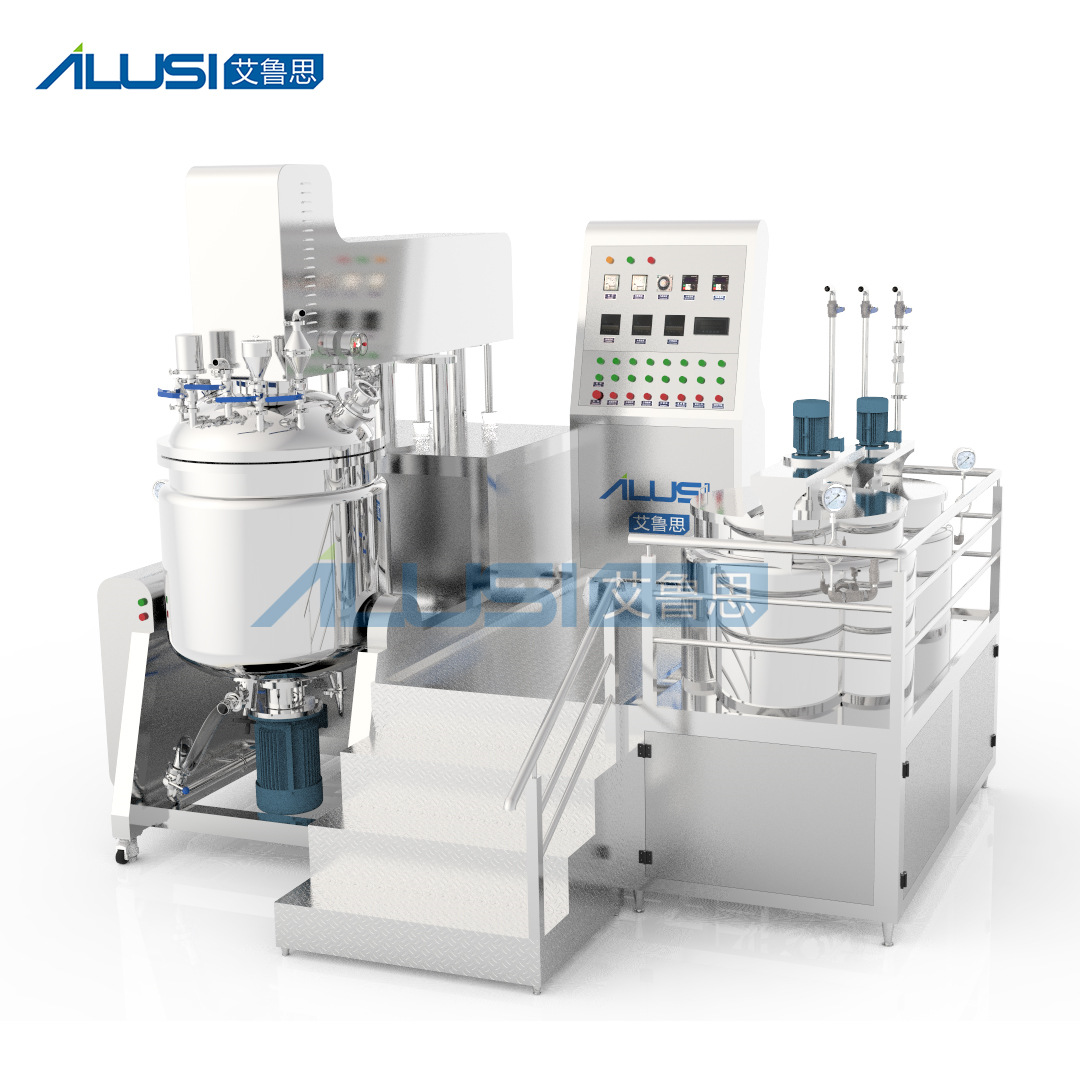

The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes, etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.
Standard Configuration

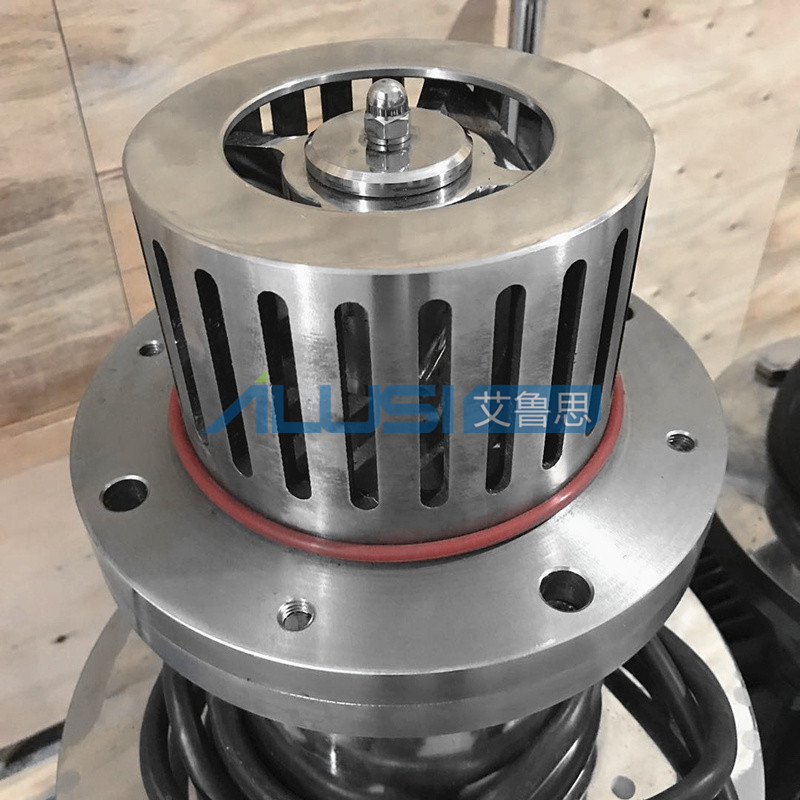

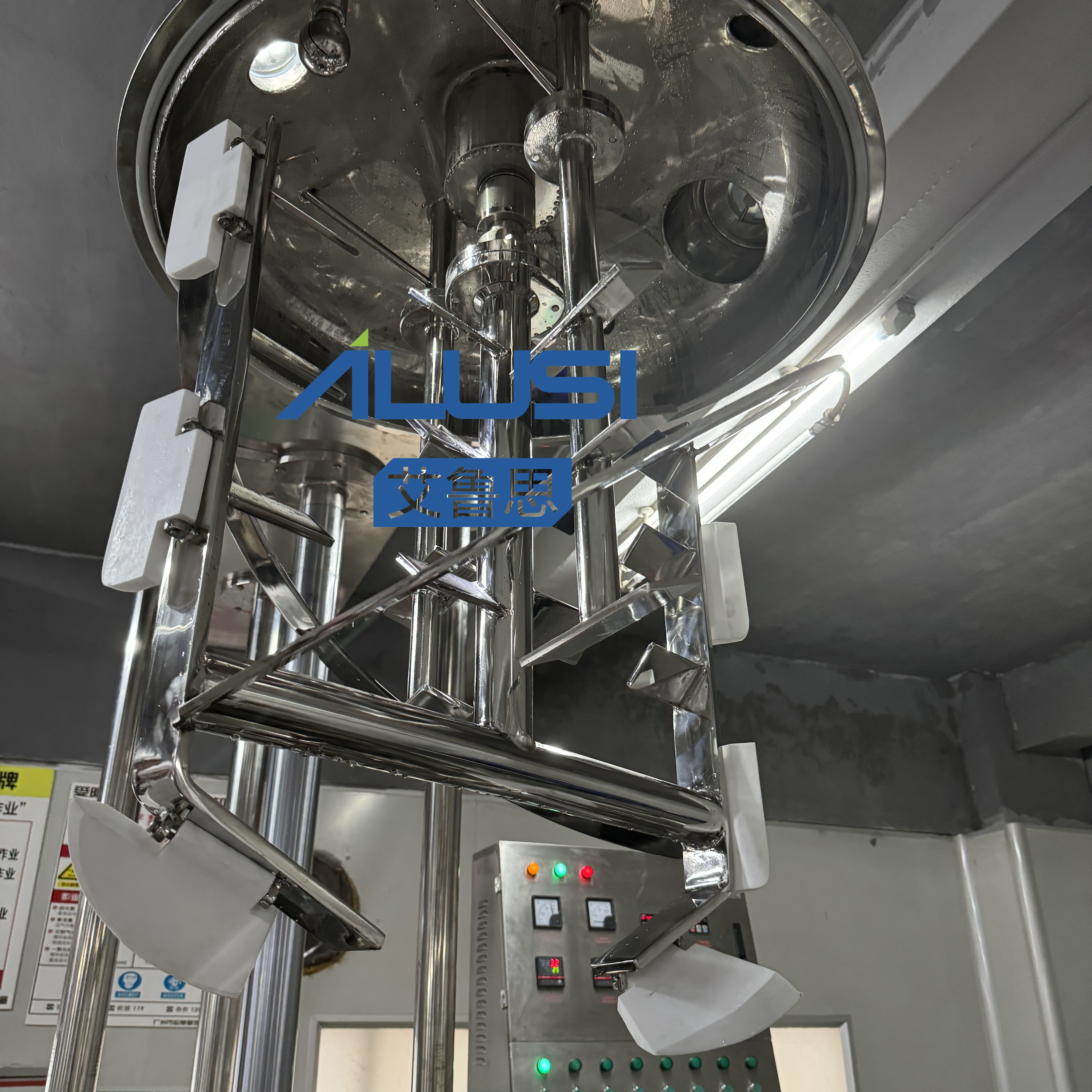

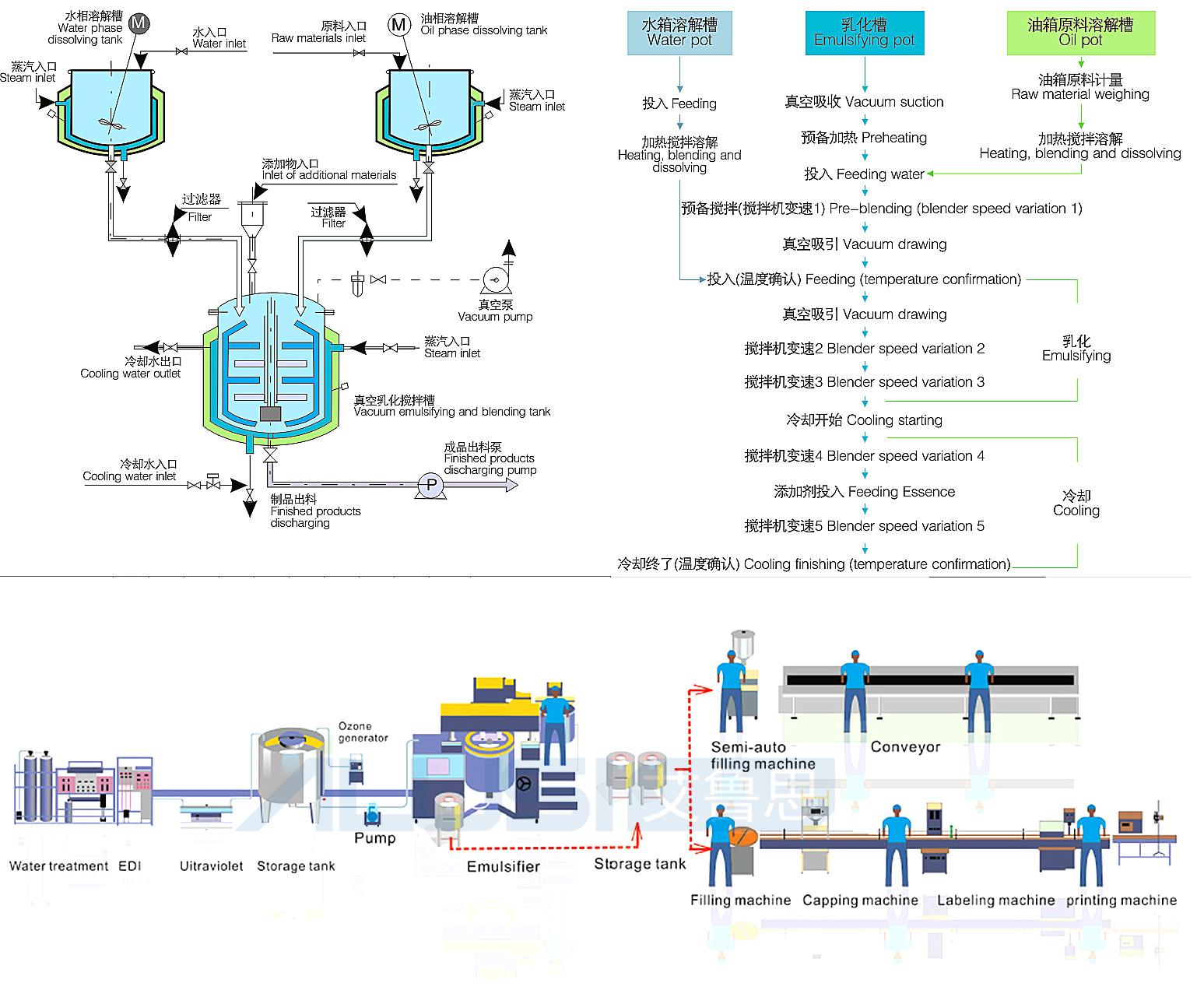

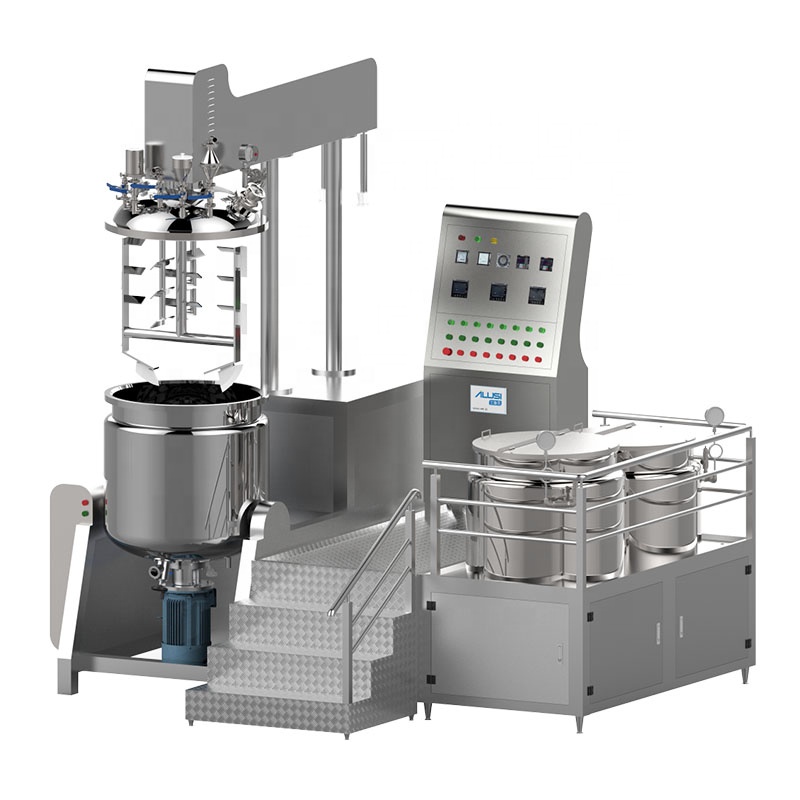

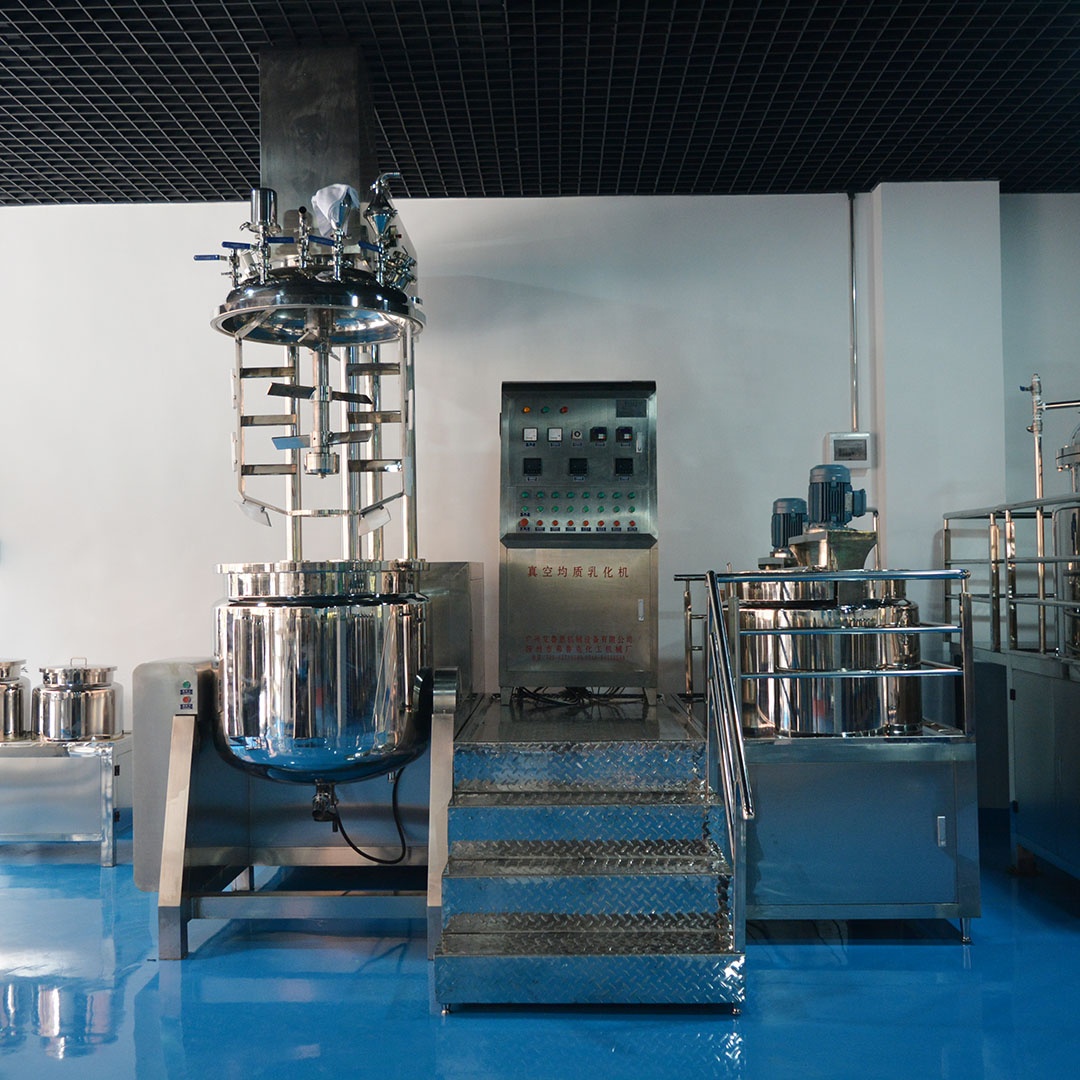

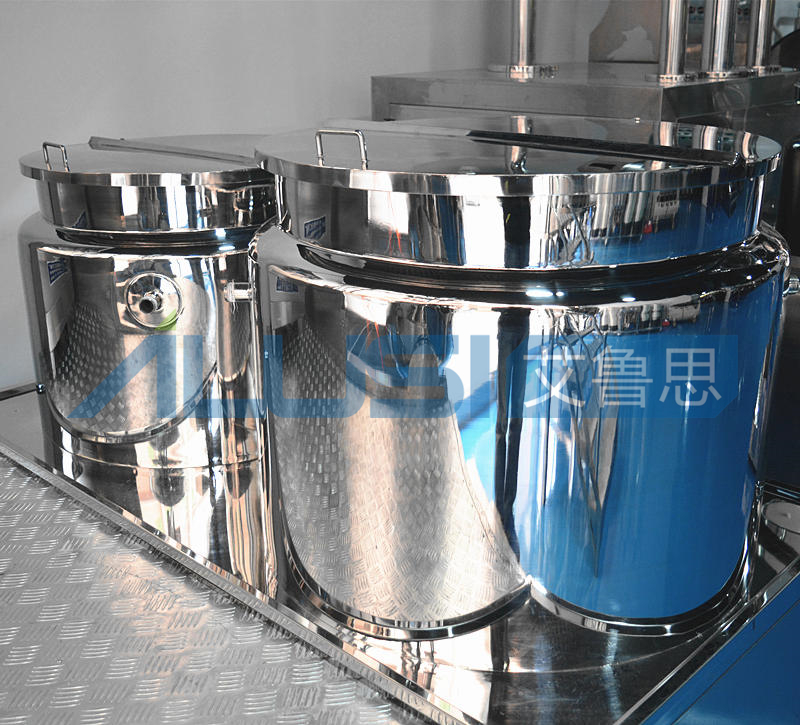

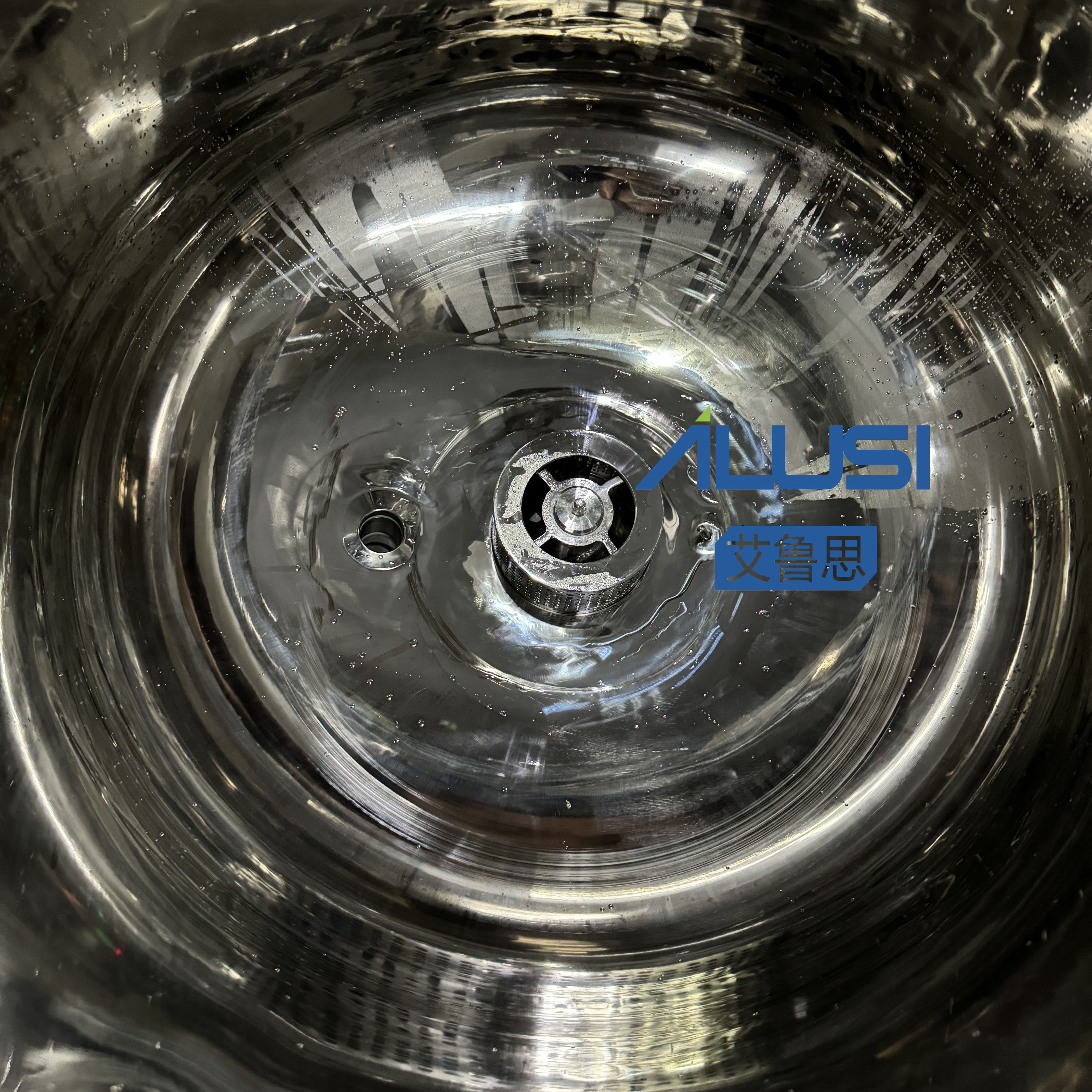

The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm – 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.

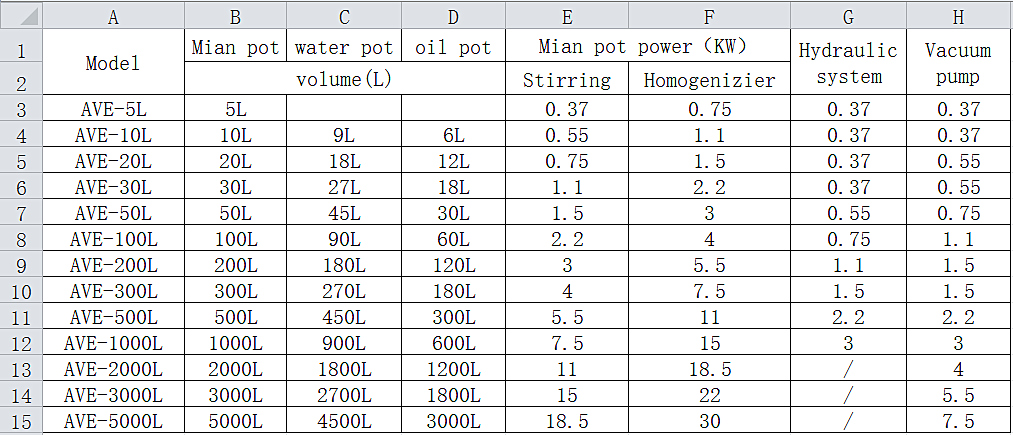

| No | Model | AVE-500 |
|---|---|---|
| 1 | Working capacity | 500L |
| 2 | Heating method | Steam/electric |

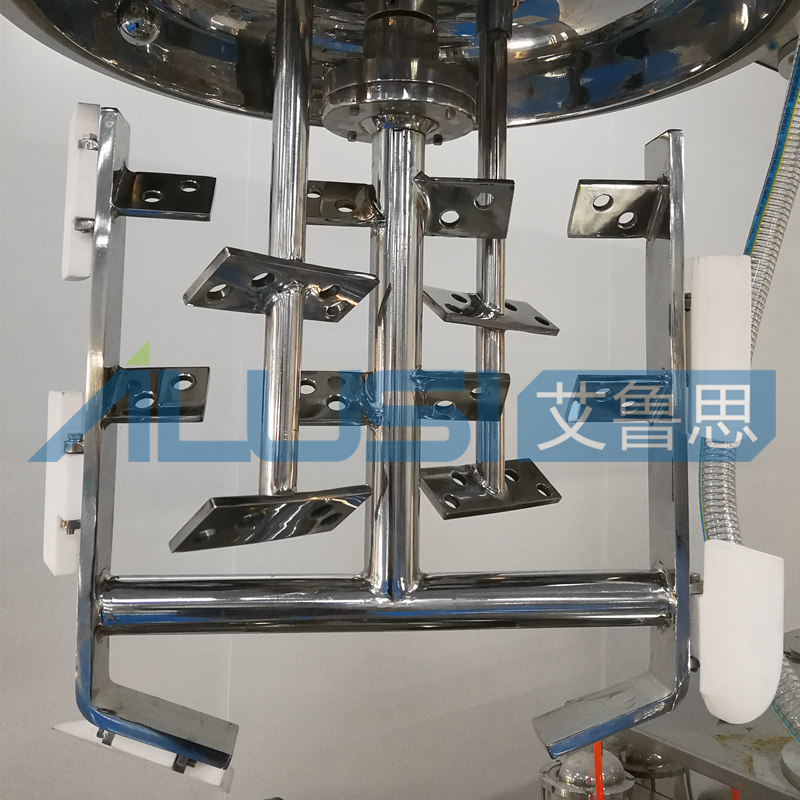

| 3 | Mixing type | Upper frame oar scrape mixer |

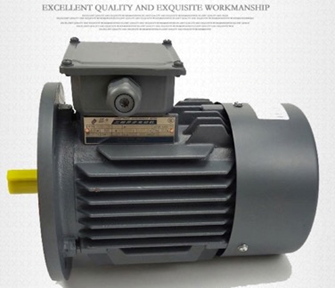

| 4 | Mixing motor power | 5.5KW |
| 5 | Mixing frequency | 5.5KW |
| 6 | Mixing Speed | 0-65rpm |

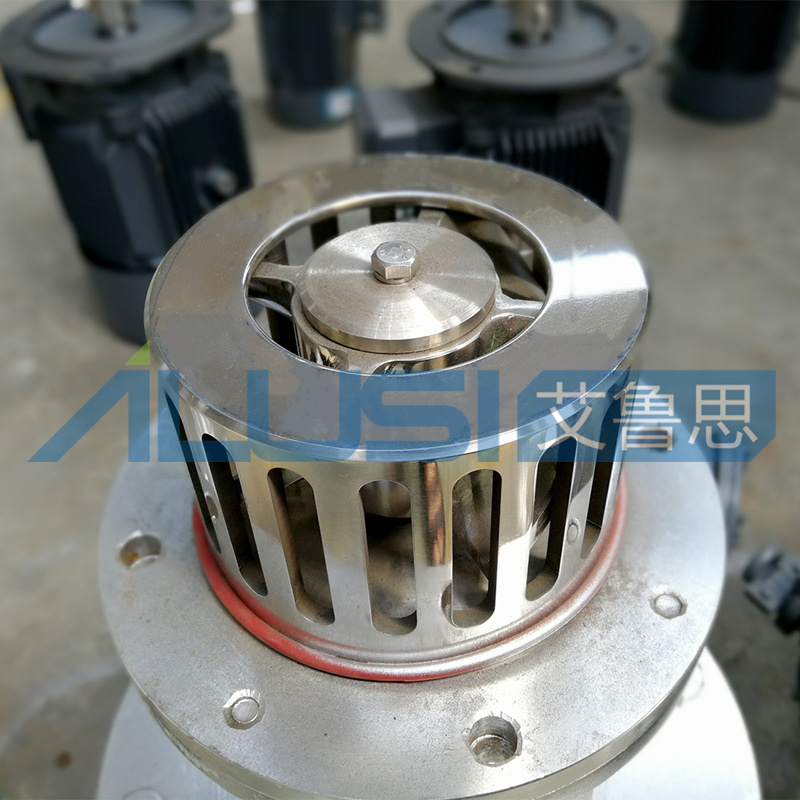

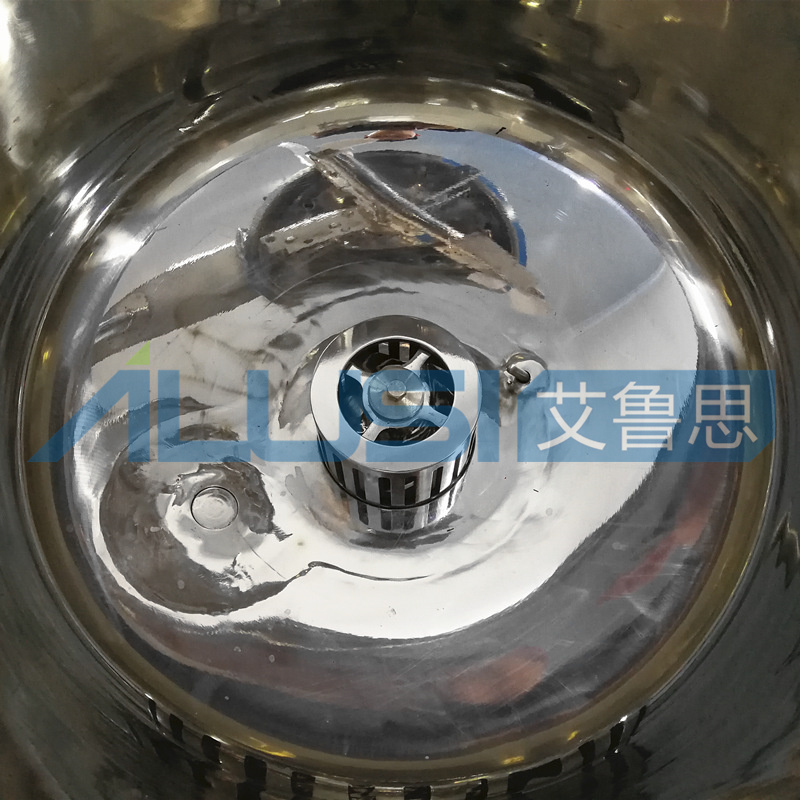

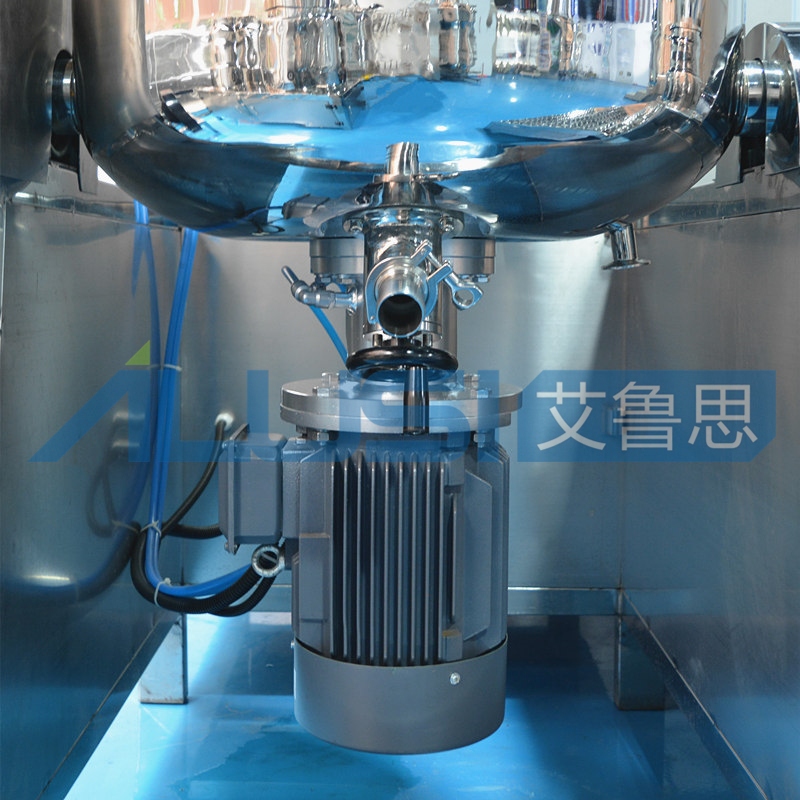

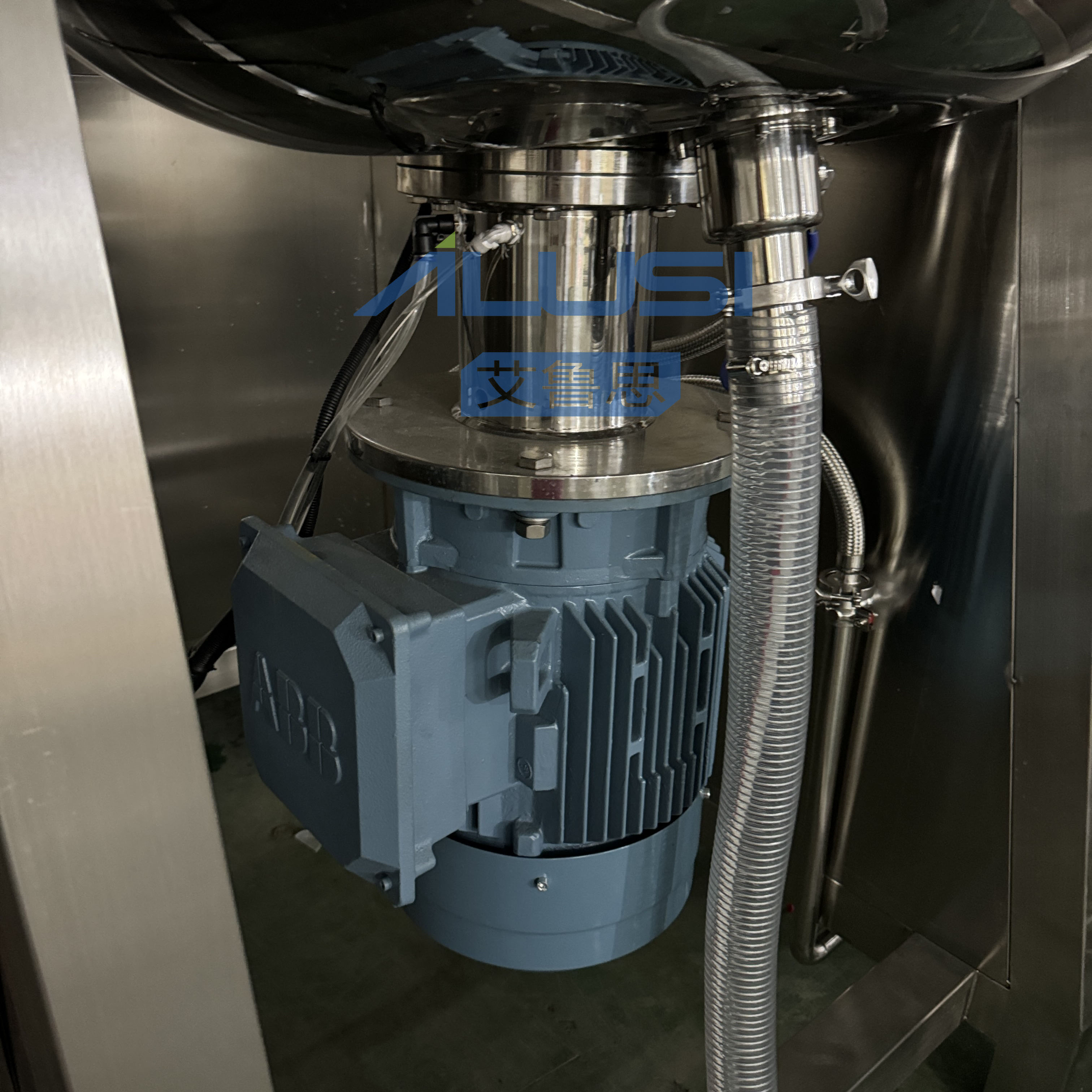

| 7 | Homogenizer | Bottom homogenizer with frequency inverter |
| 8 | Bottom Homogenizer power | 11KW |
| 9 | Speed | 0-3000rpm (50Hz)/0-3600rpm (60Hz) |

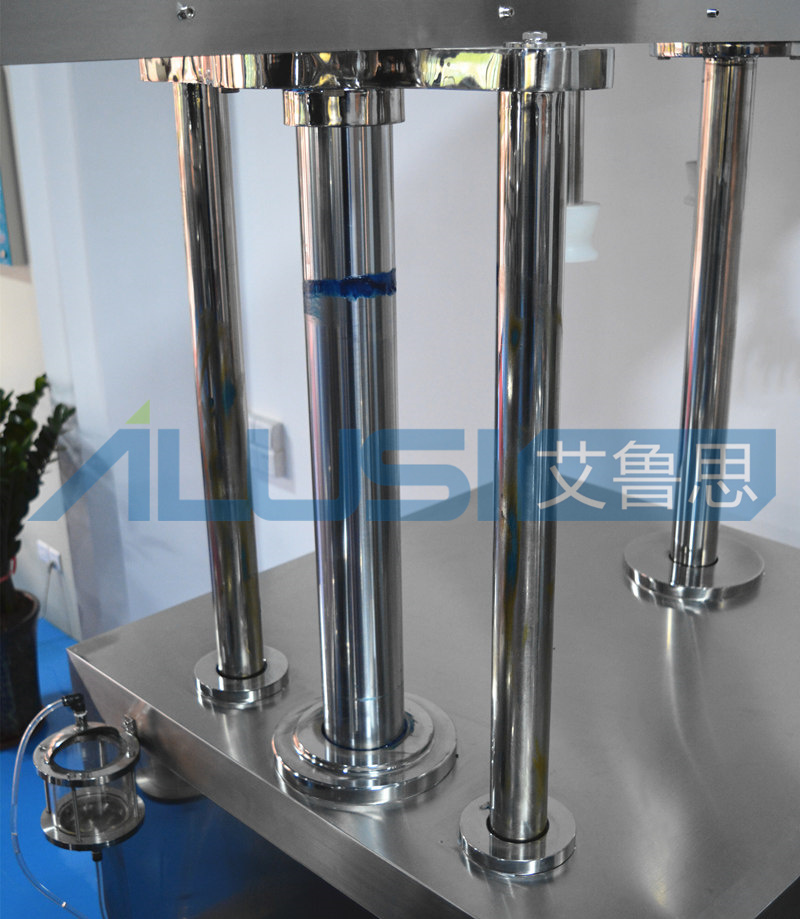

| 10 | Hydraulic lift system | Dual Hydraulic , power: 2.2KW |
| 11 | Vacuum pump | Water cycle vacuum pump, power: 2.2KW |

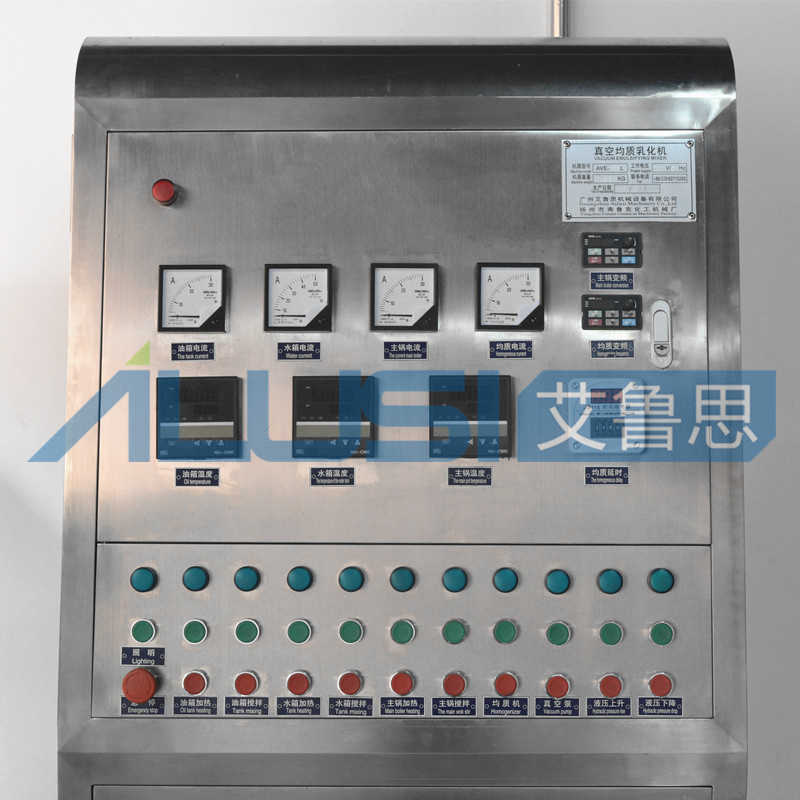

| 12 | Control method | Button control/ HMI |
| 13 | Frequency converter | Delta/Panasonic/Mitsubishi |
| 14 | Electrical components | Schneider/Delixi |
| 15 | Jacket | Double jacket, 3 layers |

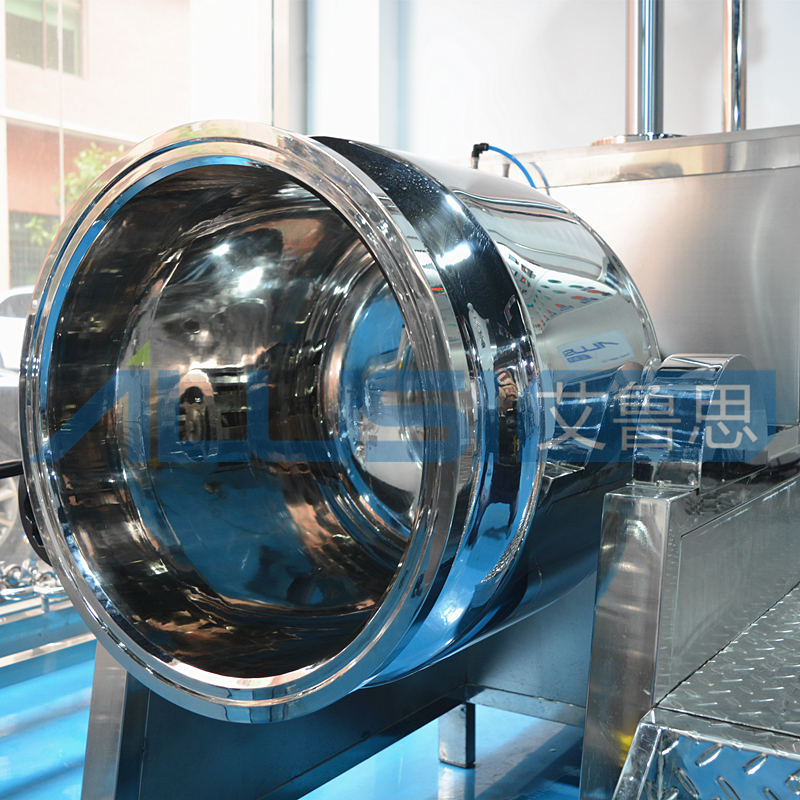

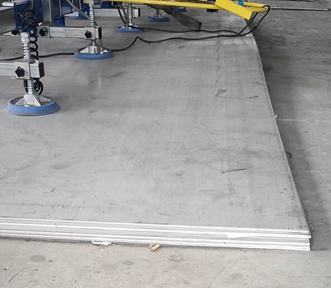

| 16 | Tank materials | Inner layer 6mm/SUS316 Middle layer 6mm/SUS304 Outer layer 4mm/SUS304 |
The equipment is packed in imported wooden boxes.
Transportation options include sea, air, express, and train delivery to ensure safe arrival.
